Description
Product Description

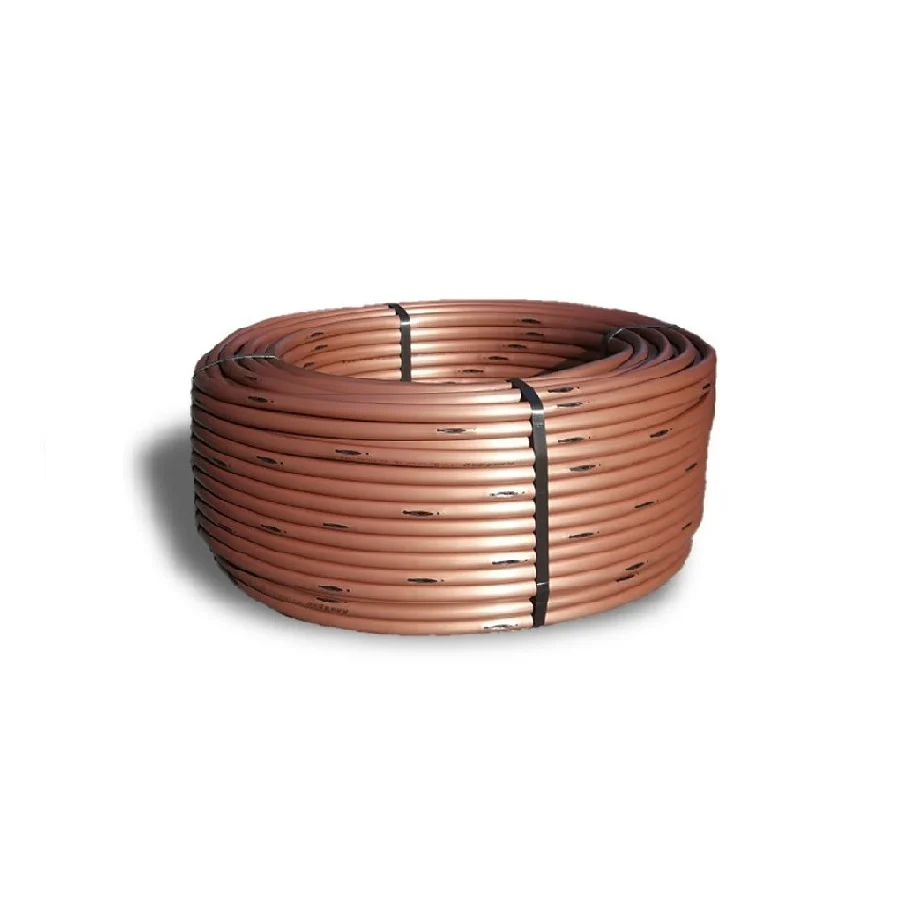

The Rain Bird XFS Subsurface Dripline is a premium irrigation solution engineered with Copper Shield™ Technology to deliver reliable, root-resistant and pressure-compensated water distribution beneath the surface. Designed for subsurface drip irrigation (SDI) applications, it provides uniform flow across varying elevations and lengths, making it ideal for turfgrass, sports fields, landscape beds, and difficult-to-irrigate areas. The XFS dripline integrates pressure-compensating emitters to ensure consistent watering and includes a patented copper chip in each emitter to prevent root intrusion—without the use of chemicals.
Key Features
✔ Pressure Compensating Emitters – Consistent flow across a wide pressure range (1.0 to 4.1 bar)
✔ Copper Shield™ Technology – Integrated copper chip protects against root intrusion naturally
✔ Flexible, Low-Profile Tubing – Easily conforms to complex layouts and contours
✔ Durable UV-Resistant Material – Suitable for long-term subsurface use
✔ Clog-Resistant Emitter Design – Built-in filtration resists blockage from debris
✔ Ideal for Subsurface Applications – Promotes water efficiency and eliminates surface runoff or evaporation
✔ Wide Emitter Spacing Options – Available in 30 cm, 40 cm, or 50 cm spacing
✔ Long-Term Water Savings – Delivers water directly to the root zone for maximum efficiency
Applications
-
Subsurface turf irrigation (residential & commercial)
-
Parks, golf courses, and sports fields
-
Shrub beds and densely planted landscape areas
-
Rooftop gardens and urban landscaping
-
Areas with irregular shapes or slopes
Technical Specifications
-
Tube Diameter: 16mm
-
Flow Rates: 1.6 LPH, 2.3 LPH (depending on model)
-
Emitter Spacing: 30 cm / 40 cm / 50 cm
-
Operating Pressure: 1.0 to 4.1 bar (15–60 psi)
-
Maximum Run Length: Up to 106 meters (depends on flow and spacing)
-
Material: UV-resistant polyethylene with copper-protected emitters
-
Installation: Subsurface (recommended depth: 10–15 cm)
